6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

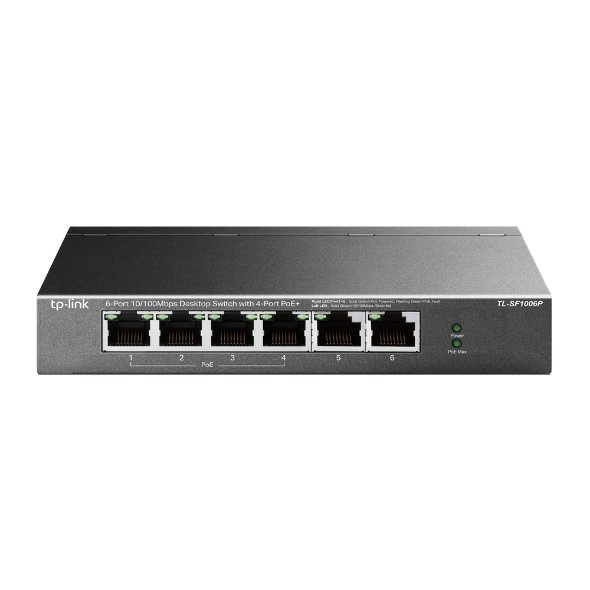

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

The TP-Link TL-SF1006P PoE Switch is a compact, reliable networking solution designed to connect and power IP cameras, wireless access points, VoIP phones and other compatible PoE devices. It features six 10/100Mbps RJ45 ports, including four PoE+ ports that transmit power and network data through a single Ethernet cable. With support for IEEE 802.3af/at standards, each PoE+ port can deliver up to 30W, while the switch provides a total PoE power budget of up to 67W. This reduces the need for separate power adapters and electrical outlets near connected devices, making installation easier and more cost-effective.

Extended PoE Transmission

The TL-SF1006P features an Extend Mode that increases PoE and data transmission distance to as much as 250 metres on ports 1–4. This feature makes the switch particularly suitable for CCTV installations in offices, warehouses, schools, residential properties and other large premises. When Extend Mode is enabled, the affected ports operate at 10Mbps. Actual transmission distance may vary depending on cable quality, cable type and the power requirements of connected devices.

Priority Mode and Intelligent Power Management

Priority Mode gives ports 1 and 2 higher transmission and power priority, helping maintain stable performance for critical devices such as security cameras. If the total power demand exceeds the available 67W PoE budget, intelligent power management protects the system by reducing or disconnecting power from lower-priority ports.

Plug-and-Play Installation

This unmanaged desktop switch requires no software installation or technical configuration. Simply connect the power adapter, network cable and compatible PoE devices to begin using the network. Auto-negotiation and Auto MDI/MDIX provide convenient cable compatibility. Its durable metal housing, fanless cooling system and compact desktop or wall-mountable design provide quiet and dependable operation in professional and residential environments.

Technical Specifications

• Model: TP-Link TL-SF1006P
• Switch type: Unmanaged desktop PoE+ switch
• Network ports: 6 × 10/100Mbps RJ45 ports
• PoE+ ports: Ports 1–4
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Maximum power per PoE port: 30W
• Total PoE power budget: 67W
• Switching capacity: 1.2Gbps
• Packet-forwarding rate: 892.8Kpps
• MAC address table: 2,000 entries
• Jumbo frame: 2KB
• Transmission method: Store-and-forward
• Standard transmission distance: Up to 100 metres
• Extend Mode distance: Up to 250 metres at 10Mbps
• Priority Mode: Supported on ports 1–2
• Flow control: IEEE 802.3x
• Cooling: Fanless
• Housing: Metal
• Mounting: Desktop or wall mounting
• Dimensions: 158 × 101 × 25mm
• Power adapter output: 54V DC / 1.3A
• Operating temperature: 0°C to 40°C
• Certifications: CE, FCC and RoHS

Buy the TP-Link TL-SF1006P PoE Switch in Kenya from Sairam Kreations for IP surveillance, office networking and small-business installations. Contact us for current pricing, availability and delivery.
